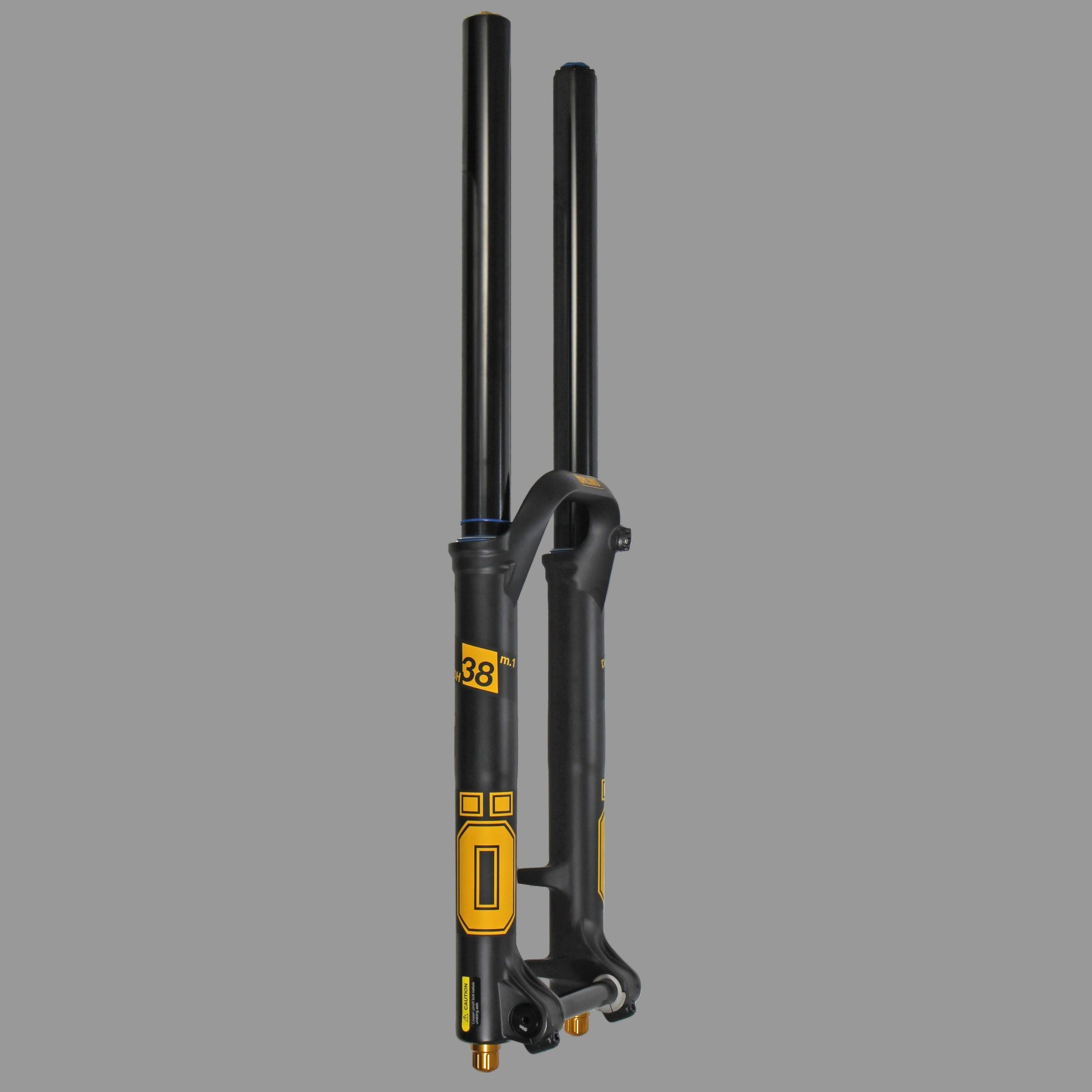

Ohlins DH38 Air TTX18 Race Fork 200mm Black

4 items left

  • Downhill fork with 38mm stanchions, bind-free bushings, and SKF seals
  • TTX18 damper's 18mm piston provides optimal small bump sensitivity
  • 15 clicks of low speed compression and low speed rebound
  • 5 clicks of high-speed compression
  • Twin piston, three chamber air spring system, isolated from the upper tubes to reduced head build up
  • Total Tune Spring Curve System (TTSC) allowing total air spring tuning from the initial movement through to the bottom out
  • 74mm post-mount disc brake mount
  • 20x110mm DH Boost thru-axle
  • Max tire size: 29x2.8" or 27.5x3.0"
  • E-Bike approved
  • (CROWN NOT INCLUDED)
Model DH38 Air TTX18
Wheel Size 29"/27.5"
Steerer (Stem/Race) Steerer and Crown Sold Separately
Offset 46-58mm
Travel 200mm
Spring Type Air
Brake Mount Disc Only (PM-200)
Dropout 20x110mm Boost
Weight 2820g (with Crown and Steerer)
Color Black
