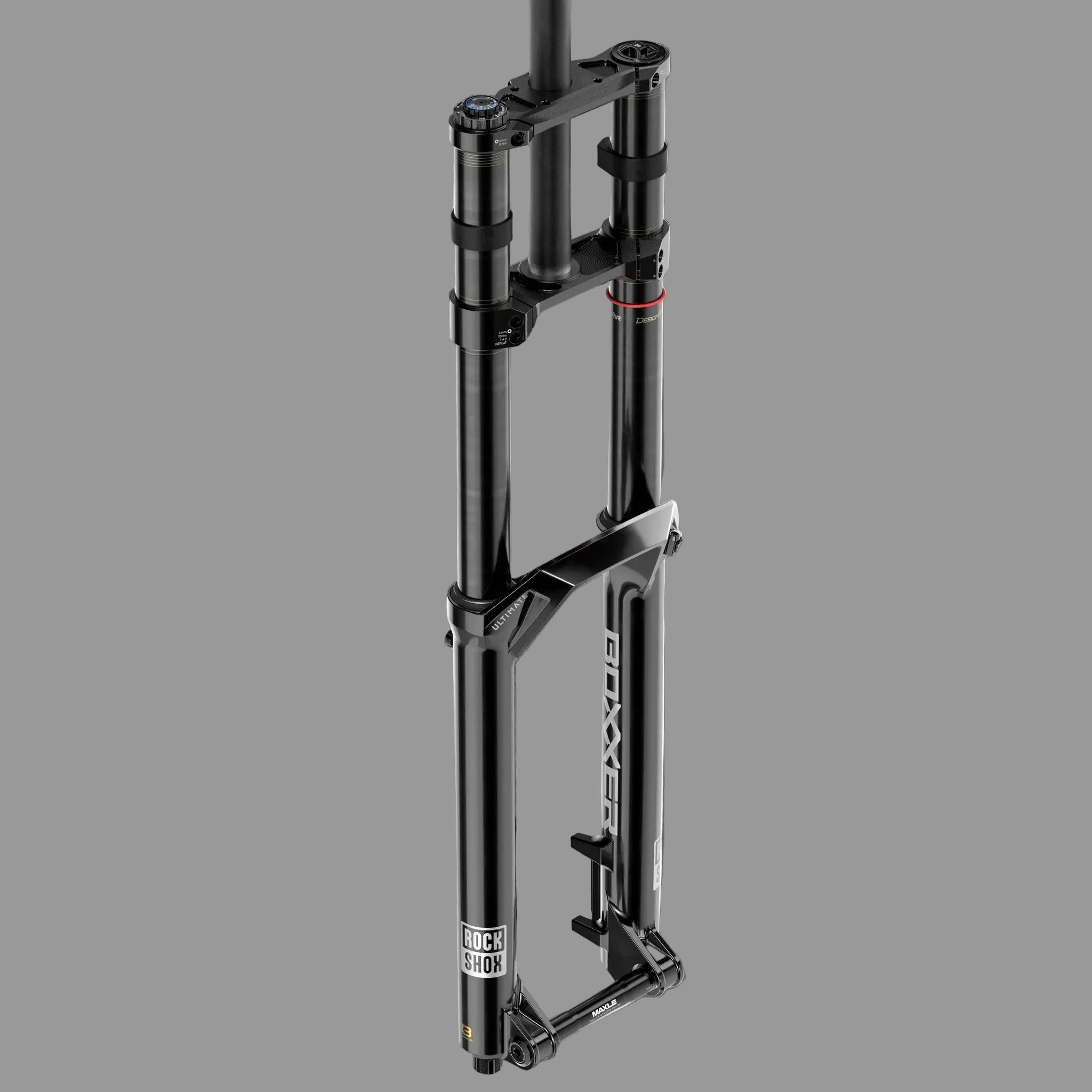

RockShox BoXXer Ultimate Charger 3.2 Suspension Fork D2

Born from racing BoXXer Ulitimate promises one thing above all—composure. By eliminating chaos before it reaches the rider every run delivers predictable speed traction and control. The all-new LinearXL air spring provides a coil-like ride—supple off the top supportive through the mid-stroke and backed by a jounce bottom-out bumper for confident end-stroke control—giving you unwavering consistency and predictability. Found only in our Ultimate forks ButterWagonTech ensures a constant supply of oil to the bushings reducing friction and maintaining smooth performance throughout the entire service interval. Intuitive HSC/LSC controls on the Charger 3.2 damper with ButterCups technology make setup fast understandable and easy to communicate. You’re so composed you don’t realize you’re going faster. But the clock says it all.

• LinearXL air spring delivers a consistent and predictable ride feel backed by a jounce bottom-out bumper for end-stroke control
• ButterWagonTech ensures a constant supply of oil to the bushings reducing friction and maintaining smooth performance throughout the entire service interval
• Charger 3.2 damper with new Rebound/Compression tunes that match LinearXL air spring achieves virtually silent performance keeping riders focused on the trail
• Control bezel with numbered Compression adjuster for intuitive adjustments—start at “0” and easily add or decrease damping
• ButterCups technology block 20% of high-frequency “trail chatter” to reduce hand and arm fatigue while the Low-Grab SKF wiper seals deliver long-lasting fork performance and a smoother ride
• Maxima 920 blended 15w reduces overall fork friction
• Bolt-on fender compatibility with front and rear coverage (BoXXer Bolt-On Fender sold separately)

  Steerer Type	Straight
  Lockout Switch	Crown
  Brake Type	Post Mount 200
  Negative Spring	Air
  Travel (mm)	200
  Offset	52,48
  Axle to Crown Length	605
  Front Axle	20mm Thru x 110mm
  Maximum Tire Width	81
  S.H.I.S. Stem Clamp Diameter	28.6
  Color	Electric Red, Black
  Crown Race	30
  Wheel Size	29"
  External Adjustments	Rebound Damping
  Defined Color	Red, Black
  Positive Spring	Air
  Stanchion Diameter	38
  Steerer Tube Length (mm)	268
